Pros:
- Simple design, easy to use
- Extra-large control buttons
- Automatic functions and app control possible
- Made in Germany
Cons:
- FRITZ!Box required for automatic switching times and app control
- Only manual control possible without FRITZ!Box
Product Description

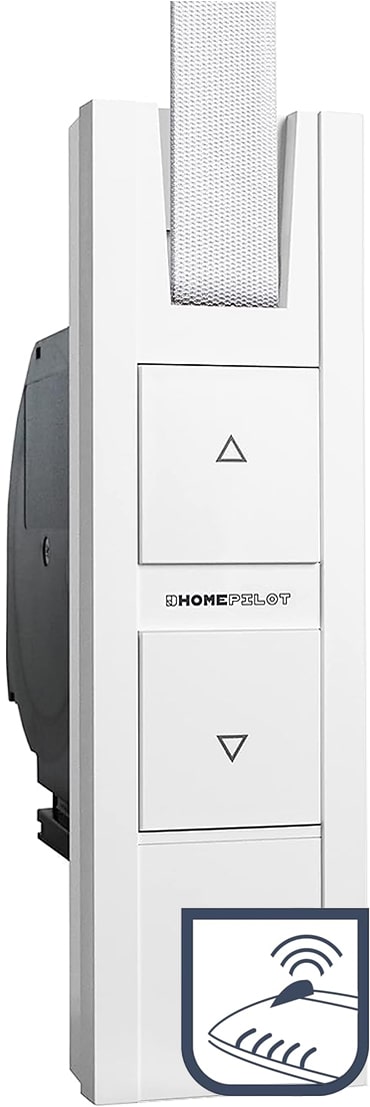

Smart Comfort with DECT Technology – HOMEPILOT RolloTron pure DECT
The HOMEPILOT RolloTron pure DECT is the ideal solution for anyone looking to effortlessly integrate their roller shutters into a smart home system. Thanks to DECT technology, this electric belt winder can be seamlessly integrated into your existing AVM Smart Home and controlled via the FRITZ!Box, providing maximum comfort and flexibility.
Easy Integration into the Smart Home
With the RolloTron pure DECT, you can control your roller shutters not only manually but also conveniently via app or voice command. In combination with the FRITZ!Box (from FRITZ!OS 7.20), it offers extensive automatic functions such as time control, astro function, and the option to synchronize with your Google calendar. Whether you're in the living room or on the other side of the world – with the FRITZ!App Smart Home, you always have full control.
Compact Yet Powerful
The RolloTron pure DECT is suitable for roller shutters up to 6 m² and provides a pulling force of up to 45 kg. Despite its compact design, it fits all standard belt boxes and enables easy retrofitting of your existing roller shutters. The in-wall installation is quick and easy, allowing you to enjoy the benefits of a smart belt winder in just a few minutes.
Reliable Quality “Made in Germany”
Like all HOMEPILOT belt winders, the RolloTron pure DECT guarantees the highest quality workmanship. Made in Germany, this belt winder offers durability and reliability, ensuring consistent performance over many years.
Conclusion: Smart Comfort for Every Day
The HOMEPILOT RolloTron pure DECT is the perfect choice for those looking to integrate their roller shutters into a modern smart home system. Easy to install, versatile in its application, and perfectly compatible with the FRITZ!Box – making your home even more comfortable and secure.
Technical Data:
| Feature | Value |
|---|---|
| Mounting type | Flush-mounted (installation dimensions W×H×D: 36 × 140 × 133 mm) |
| Hole spacing | 165 mm, 175 mm, 185 mm |
| Operating voltage | 230 V / 50 Hz, connection via Euro plug |
| Nominal power | 70 W |
| Nominal torque | 10 Nm |
| Protection class | II (for dry rooms only) |
| Max. pull weight | 45 kg |
| Winding capacity at 1.0 mm belt thickness | 7.6 m |
| Winding capacity at 1.3 mm belt thickness | 6.2 m |
| Belt widths | 23 mm |
| Manufacturer's website | en.homepilot-smarthome.com |
| Customer service | service.homepilot-smarthome.com/hc/en |
| User manual | Download user manual |
Functions:
| Feature | Value |
|---|---|
| Remote control possible | Yes |
| Smart Home, app/voice control possible | Yes (via FRITZ!Box, sold separately) |
| Time automation | Individual settings (via FRITZ!Box, sold separately) |
| Astro function | Yes (via FRITZ!Box, sold separately) |
| Summer/winter time switching | Yes (via FRITZ!Box, sold separately) |
| Sun automation | No |
| Dusk automation | Yes (via FRITZ!Box, sold separately) |
| Date/time setting | No |
| Display | No |
| Obstacle detection | Yes |
| Soft start/stop & noise reduction | Yes |
Comparison of all HOMEPILOT belt winders
Installation

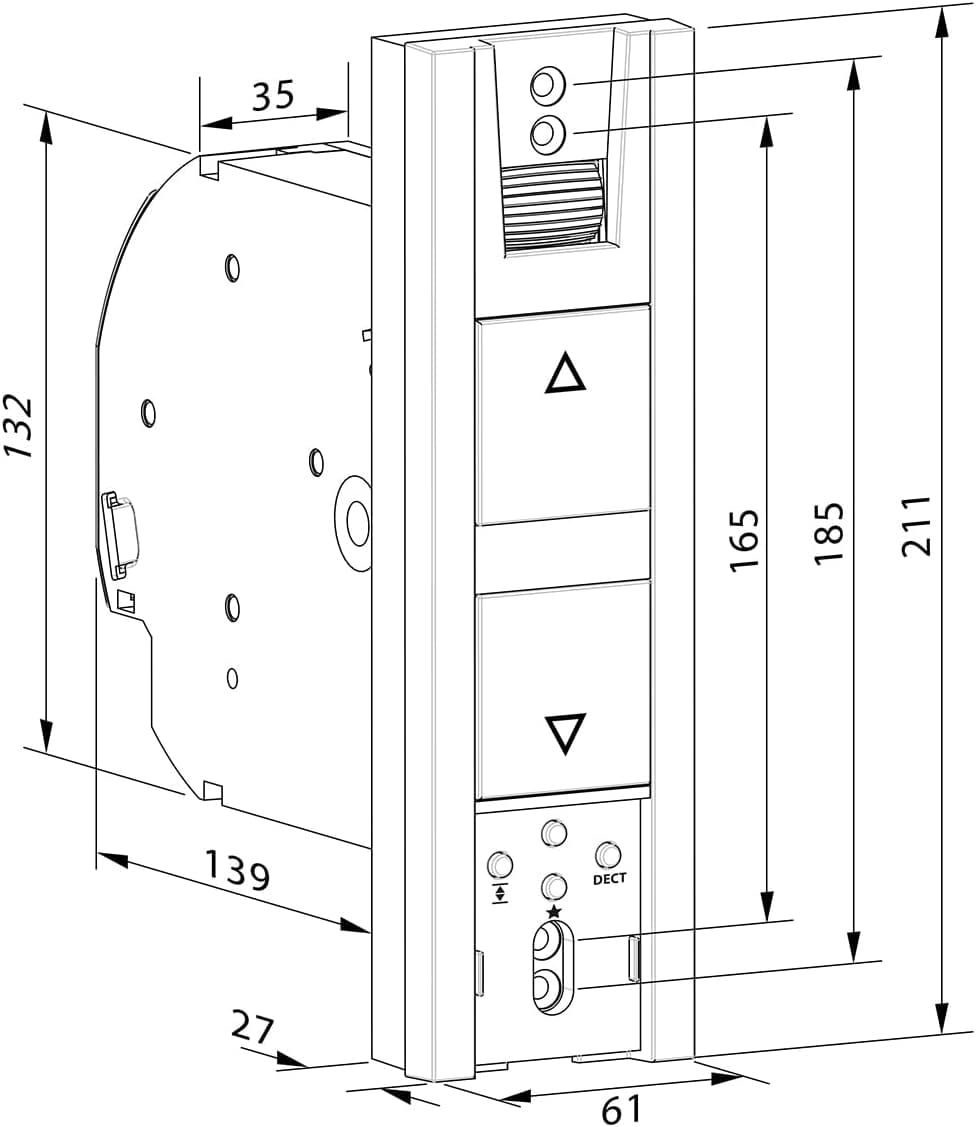

(Dimensions in mm)

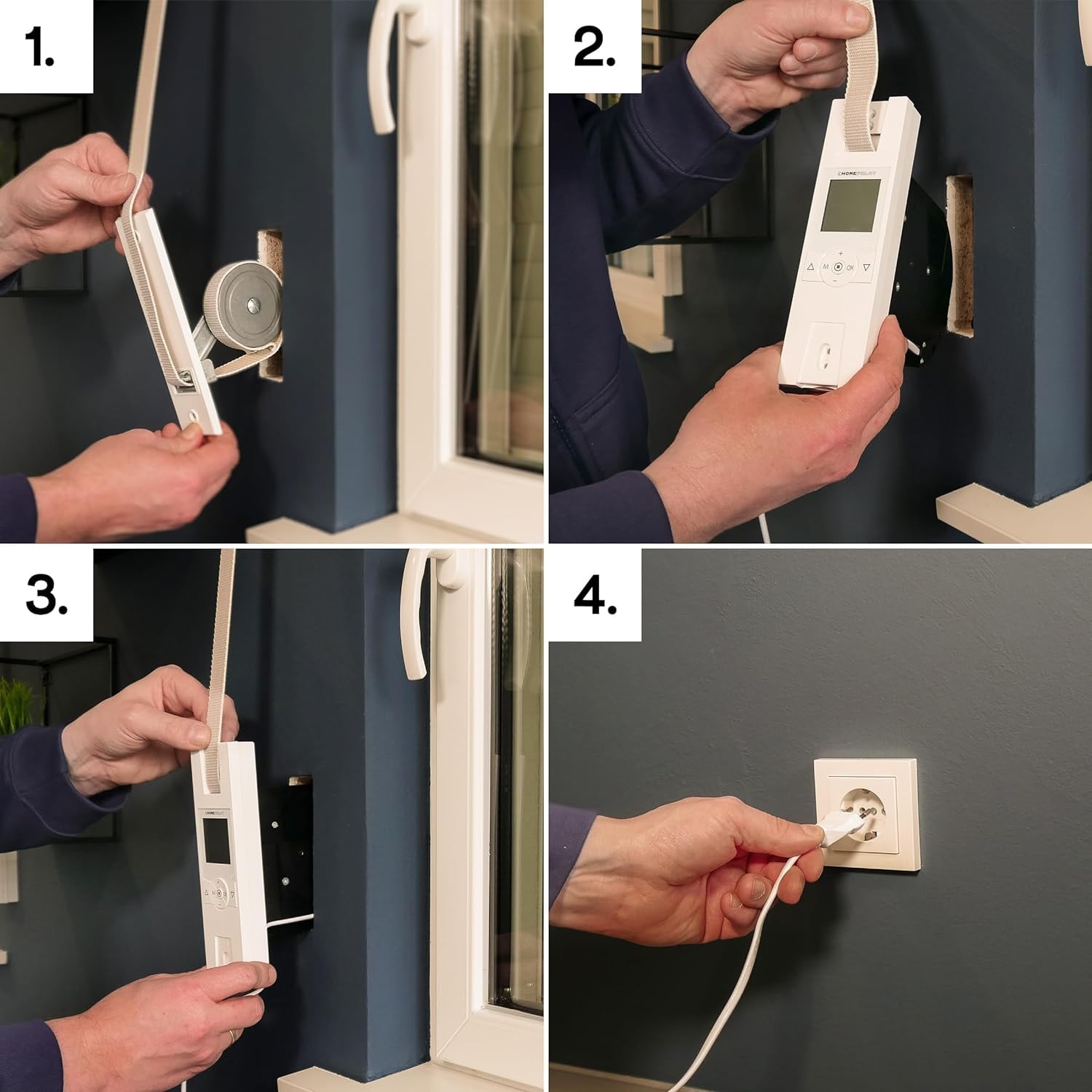

(1.) Remove the old belt winder. (2.) Insert the belt into the RolloTron pure DECT and fasten it. (3.) Mount the RolloTron pure DECT. (4.) Connect, set up – done.
Application Video:
(You can also turn on the subtitles in the video)
Customer Review:
Jett
25 June 2024*Connection via FritzBox and Home Assistant without any problems
„I was looking for a retrofit solution for my relatively heavy wooden roller shutter in the bedroom. It needed to be "smart," with at least native control via an app or, at the very least, a timer function. Additionally, I didn't want to set up a new gateway.
The Homepilot RolloTron in this version perfectly meets these requirements. Installation was hassle-free and took just a few minutes – the boxes were already deep enough, so I didn't have to do any extra chiseling or drilling. The noise level is absolutely acceptable as well, and I don't quite understand the reviews that claim otherwise. If you have lightweight plastic shutters, there is probably a quiet motor that can lift them, but the noise my wooden shutters make when raised is louder than the motor itself.
Ultimately, the connection to the FritzBox also worked seamlessly (even though it’s three rooms and five walls away), and connecting it to Home Assistant was also straightforward. Therefore, I can only recommend the RolloTron belt winder to anyone looking for a similar solution.”
