Pros:
- Discreet design, easy handling
- Large control buttons
- Automatic functions and app control available
- Made in Germany
Cons:
- Gateway premium required for app & voice control
- Manual control only possible without Gateway or without premium-smart model
- Slightly more expensive
Functions:
| Feature | Value |
|---|---|
| Remote control possible? | Yes |
| Smart Home, app/voice control possible? | Yes (via Gateway premium*, sold separately) |
| Matter capable? | Yes (via premium Gateway* as Matter Bridge, sold separately) |
| Time automation? | Individual settings (via Gateway premium*, sold separately) |
| Astro function? | Yes (via Gateway premium*, sold separately) |
| Summer/winter time switching? | Yes (via Gateway premium*, sold separately) |
| Sun automation? | Yes (Smart Sun Sensor* or Smart Weather Sensor*, sold separately)* |
| Dusk automation? | Yes (via Gateway premium*, sold separately) |
| Date/time setting? | No |
| Display? | No |
| Obstacle detection? | Yes |
| Soft start/stop & noise reduction? | No |
Compare all HOMEPILOT Belt Winders
Technical Data:
| Feature | Value |
|---|---|
| Mounting type: | Surface-mounted (180° adjustable) |
| Hole spacing: | 172 mm |
| Operating voltage: | 230 V / 50 Hz, connection via Euro plug |
| Nominal power: | 70 W |
| Nominal torque: | 8 Nm |
| Protection class: | II (for dry rooms only) |
| Max. pull weight: | 30 kg |
| Winding capacity at 1.0 mm belt thickness: | 5.0 m |
| Winding capacity at 1.3 mm belt thickness: | 4.0 m |
| Belt widths: | 15 mm |
| Manufacturer's website: | en.homepilot-smarthome.com |
| Customer service: | service.homepilot-smarthome.com/hc/en |
| User manual: | Download user manual |
| Manufacturer: | DELTA DORE RADEMACHER GmbH |
| Brand: | HOMEPILOT |
| Article number: | 10251530 |
Installation

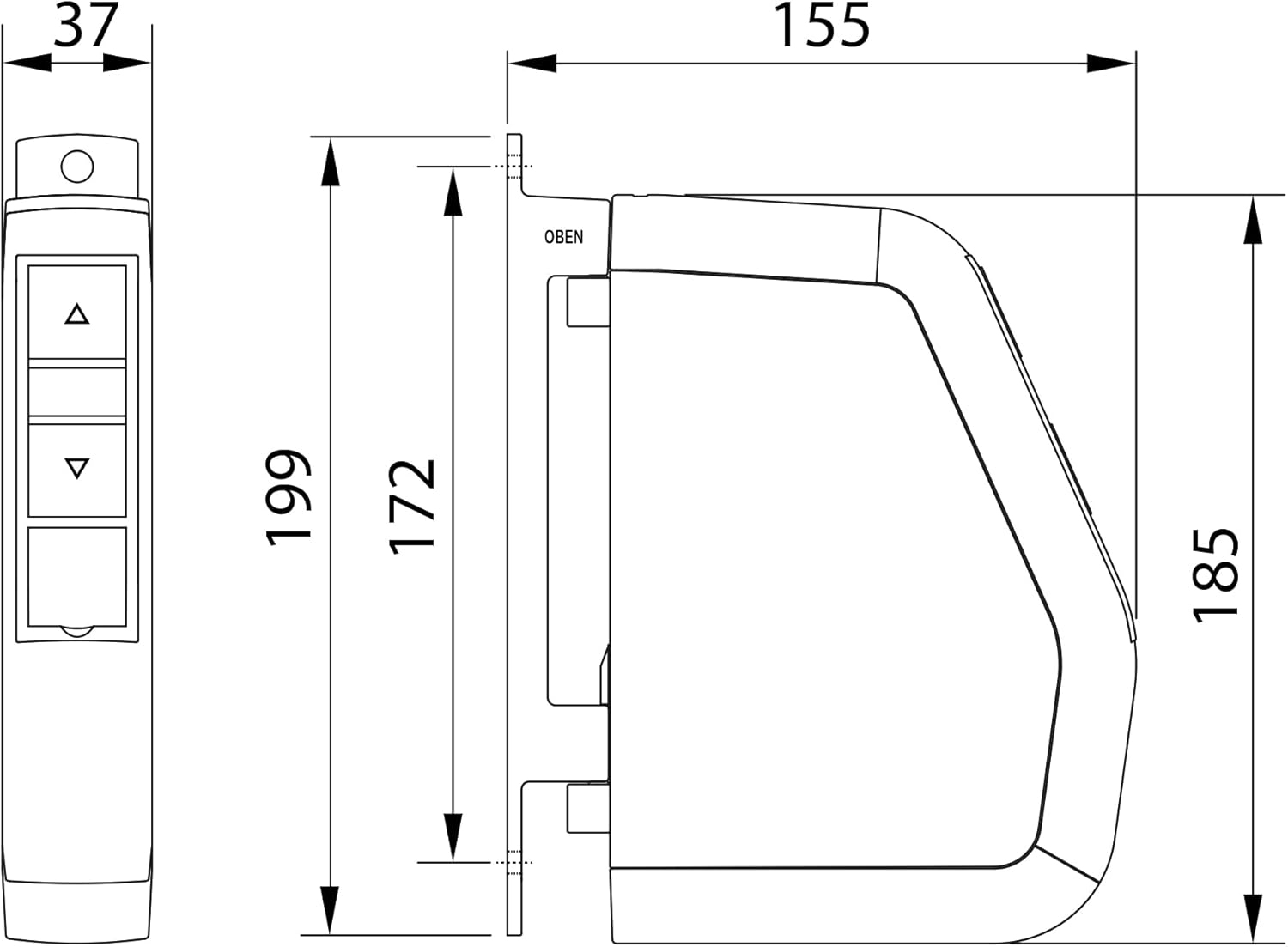

(Dimensions in mm)

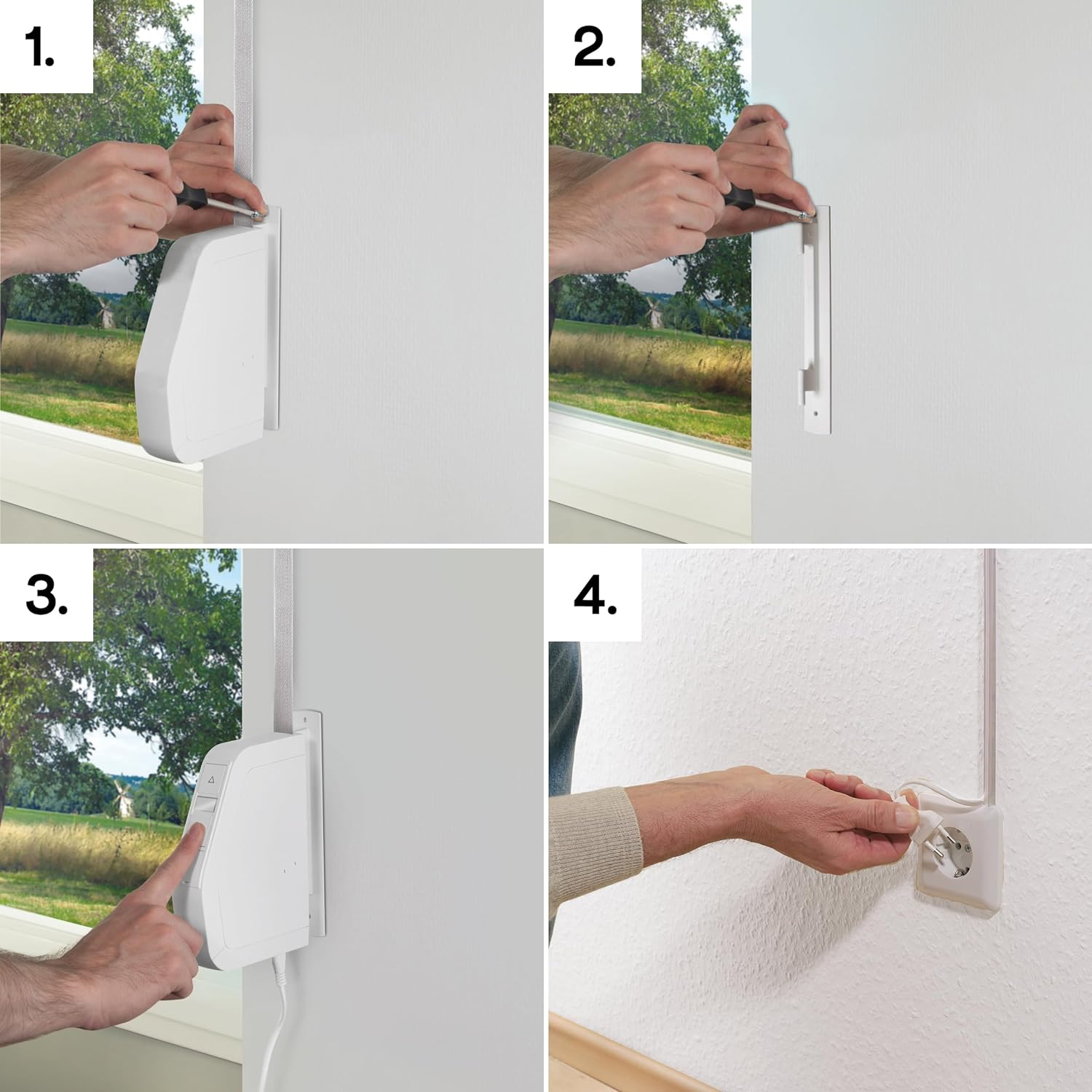

(1.) Remove the old belt winder. (2.) Attach the new wall mount. (3.) Mount the RolloTron pure smart surface-mounted Minibelt. (4.) Connect, adjust – done.
Product Description

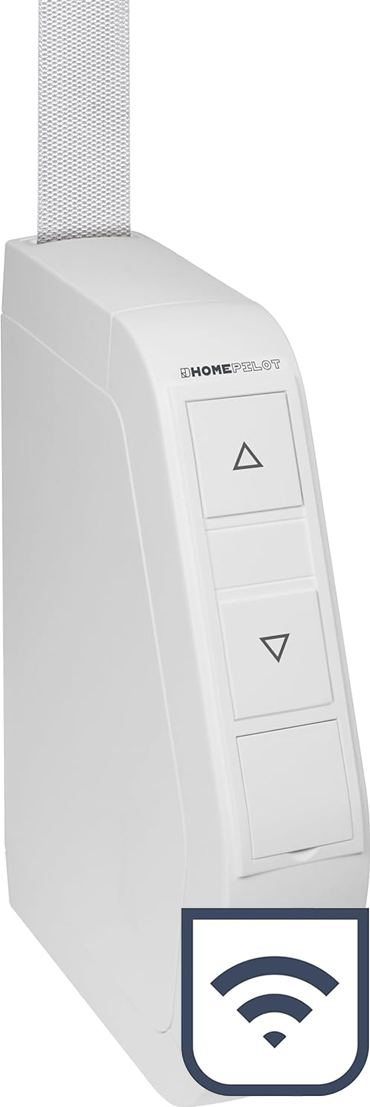

Smart comfort in a compact form – HOMEPILOT RolloTron pure smart Surface Mounted Minibelt
If you are looking for a space-saving and smart solution for your roller shutters, the HOMEPILOT RolloTron pure smart Surface Mounted Minibelt is the perfect choice. This electric belt winder combines the latest smart home technology with a compact design specifically developed for limited space.
Smart control for greater flexibility
The RolloTron pure smart surface-mounted Minibelt is more than just a simple belt winder. With a traction force of up to 30 kg, it effortlessly controls lightweight plastic roller shutters up to a size of 5 m². Thanks to smart home integration, you can not only operate your shutters manually but also conveniently control them via app or voice command – provided you have integrated the HOMEPILOT Gateway premium (sold separately) into your system.
Easy installation and flexible application
The surface-mounted installation is quick and easy. The belt winder can be swiveled by 180°, offering you maximum flexibility in installation and use. The large control buttons enable intuitive operation directly on the device, while the Gateway premium and additional sensors like the smart sun sensor or smart weather sensor let you utilize extensive automatic functions.
Reliability and quality “Made in Germany”
As with all HOMEPILOT belt winders, you can rely on the highest manufacturing quality with the RolloTron pure smart surface-mounted Minibelt. Manufactured in Germany, this belt winder provides durability and reliability that you can count on every day.
Conclusion: The smart belt winder for tight spaces
The HOMEPILOT RolloTron pure smart Surface Mounted Minibelt is the ideal choice for anyone looking to control their roller shutters smartly and comfortably without taking up much space. Its compact design, easy installation, and versatile smart home integration bring modern comfort to your home – even in the smallest spaces.
Customer Review:
Spike
May 29, 2024*Very good belt winder
„Very good device. Easy to install. Connecting to the app with the help of the Gateway is absolutely no problem. Integration into ioBroker is also possible. Very quiet operation, only the price hurts a bit.”
